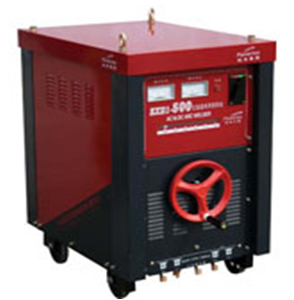

Tech. Spec. / Model |
ZXE1 – 315/250 |
ZXE1 – 400/315 |
ZXE1 – 500/400 |
| Rated Welding Current (A) |
315/250 |
400/315 |
500/400 |
| Power Voltage (V) |
220/440 |
220/440 |
220/440 |
| Rated Duty Cycle (%) |
AC – 50% / DC – 60% |
AC – 50% / DC – 60% |
AC – 50% / DC – 60% |
| Rated Input Capacity (KVA) |
14.2 |
14.2 |
14.2 |
| Current Range (A) |
80 – 315 / 60 – 250 |
80 – 400 / 60 – 315 |
30 – 500 / 70 – 400 |
| No Load Voltage (V) |
75 – 80 |
75 – 80 |
75 – 80 |
| Usable Electrodes (mm) |
2 – 4(AC) 2 – 4(DC) |
2.5 – 4(AC) 2.5 – 4(DC) |
2.5 – 5(AC) 2.5 – 5(DC) |
| Weight (Kg) |
100 |
125 |
160 |
|
|
 Inverter
MMA Series |
|
Tech. Spec. / Model |
MMA – 160 |
MMA – 200 |
MMA – 250 |
| Input Power Voltage (V) |
220 |
220 |
415V (3Phs.) |
| Frequency (Hz) |
50 |
50 |
50 |
| Rated Duty Cycle (%) |
60% |
60% |
60% |
| Rated Input Capacity (KVA) |
5.3 |
6.5 |
9.4 |
| Current Range (A) |
30 – 160 |
30 – 200 |
30 – 250 |
| Rated Output Volts (V) |
55 – 60 |
55 – 60 |
55 – 60 |
| Usable Electrodes (mm) |
2 – 3.15 |
2 – 4 |
2 – 4 |
| Efficiency (%) |
85 |
85 |
85 |
| Weight (Kg) |
6 |
7.5 |
15 |
|
|
| |
|
Tech. Spec. / Model |
MMA-400 |
MMA-500 |
MMA-630 |
| Rated Input Voltage (V) |
415V (3Phs.) |
415V (3Phs.) |
415V (3Phs.) |
| Rated Input Capacity (KVA) |
16.5 |
20 |
25 |
| Output Current Range (A) |
30-400 |
30-500 |
30-630 |
| Rated output Volt (V) |
70 |
75 |
78 |
| Duty Cycle (%) |
60 |
60 |
60 |
| Efficiency (%) |
85 |
85 |
85 |
| Usable Electrodes (mm) |
2.5-5 |
2.5-6 |
2.5-6 |
| Weight (Kg) |
35 |
42 |
50 |
|
| |
| |
| |
Rama Equalizer Series
PRODUCT TECHNICAL SPECIFICATIONS
|
Models |
RAMA-150 |
RAMA-250 |
RAMA-350 |
RAMA-450 |
RAMA-600 |
| INPUT |
|
| Supply voltage 3 PH |
380/415/440 |
380/415/440 |
380/415/440 |
380/415/440 |
380/415/440 |
| Primary Current at Max. Output |
30A |
40A |
50A |
60A |
60A |
| OUTPUT |
D.C. |
D.C. |
D.C. |
D.C. |
D.C. |
| Open circuit Voltage |
60 |
70 |
75 |
80 |
90 |
| Max. Continuous Current at 100% Duty Cycle |
90 |
150 |
210 |
270 |
360 |
| Max. Continuous at
60% Duty Cycle |
150 |
250 |
350 |
450 |
600 |
| TypeOf regulation |
3 poll 6way |
3 poll 6way |
3 poll 8way |
3 poll 8way |
3 poll 8way |
| Class of Cooling |
H |
H |
H |
H |
H |
| Type of Cooling |
Forced Air Cooled |
Forced Air Cooled |
Forced Air Cooled |
Forced Air Cooled |
Forced Air Cooled |
|
|
* NOTE We reserve the right to change the design and/or modify the specification at our discretion.
|
| |
Rama
Rectifier Series
PRODUCT TECHNICAL SPECIFICATIONS
|
CAPACITY OF RECTIFIER MAX. |
RAMA-300 |
RAMA-400 |
RAMA-500 |
RAMA-600 |
| INPUT |
| Supply voltage 3 PH |
380/415/440 |
380/415/440 |
380/415/440 |
380/415/440 |
| Primary Current at Max. Output |
30A |
40A |
50A |
60A |
| OUTPUT |
D.C. |
D.C. |
D.C. |
D.C. |
| Open circuit Voltage |
80 |
90 |
90 |
95 |
| Max. Continuous Current at 100% Duty Cycle |
225 |
300 |
340 |
420 |
| Max. Continuous at
60% Duty Cycle |
300 |
400 |
500 |
600 |
| KVA-Max. Continuous |
15 |
20 |
25 |
30 |
| KVA- Max. |
20 |
26 |
33 |
43.2 |
| Welding Current range
(in Two Ranges) |
10-300A |
10-400A |
10-500A |
10-600A |
| GENERAL |
| Max. Ambient Temp. to
which Rating Apply |
40 C |
40 C |
40 C |
40 C |
| Class of Cooling |
H |
H |
H |
H |
| Type of Cooling |
---Forced Air Cooled--- |
| Approx. Dimensions
(LxWxH) INCHES |
28x20x28 |
30x21x30 |
31x22x31 |
32 x22x32 |
| Approx. Weight Kg. |
180 |
220 |
250 |
295 |
|
| |
| |
