Tech. Spec. / Model |
LGK – 40 |

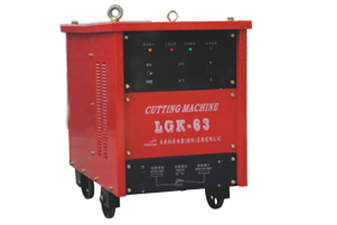

LGK – 63 |
LGK – 100 |
| Power Voltage (V) |
415V (3Phs.) |
415V (3Phs.) |
415V (3Phs.) |
| Rated Output Current(A) |
40 |
63 |
100 |
| Max. Cutting (mm) |
15 |
20 |
30 |
| Rated Output Current(A) |
17 |
26 |
45 |
| Rated Input Capacity(KVA) |
11 |
17 |
26 |
| Rated Duty Cycle (%) |
60 |
60 |
60 |
| Weight (Kg) |
85 |
110 |
145 |
| Air Pressure (MPA) |
0.5 |
0.5 |
0.5 |
|
|
 Inverter
DC Plasma Cutting Series
|
.png)
Tech. Spec. / Model: |
CUT-40 |
CUT-60 |
| Power Voltage (V) |
220 |
415 (3Phs.) |
| Rated Duty Cycle (%) |
60% |
60% |
| Current Range (A) |
20 – 40 |
20 – 60 |
| Rated Input Capacity (KVA) |
4.8 |
7.9 |
| Efficiency (%) |
85 |
85 |
| Rated Output Volt (V) |
90-100 |
100-110 |
| Max. Cutting thickness (mm) |
12 |
20 |
| Weight (Kg) |
8 |
19 |
|
|
|
|
|
Tech.
Spec. / (Model) |

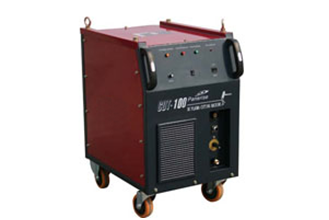

CUT-80 |
CUT-100 |
CUT-120 |
CUT-160 |
| Input Power Voltage |
415V (3Phs.) |
415V (3Phs.) |
415V (3Phs.) |
415V (3Phs.) |
| Rated Duty Cycle (%) |
60 |
60 |
60 |
60 |
| Output Current Range (A) |
20-80 |
30-100 |
30-120 |
40-160 |
| Rated Output Voltage (V) |
170 |
270 |
300 |
315 |
| Rated Input Capacity (KVA) |
9.5 |
15 |
18 |
25 |
| Efficiency (%) |
85 |
85 |
85 |
85 |
| Max. Cutting Thickness (mm) |
25 |
28 |
30 |
35 |
| Weight (Kg) |
21 |
36 |
45 |
52 |
|
|
|
