Tech. Spec. / Model |
BX1 – 250 |
BX1 – 315 |
BX1 – 400 |
BX1 – 630 |
| Rated Output Current (A) |
250 |
315 |
400 |
630 |
| Power Voltage (V) |
220/440 |
220/440 |
220/440 |
220/440 |
| Current Adjustment |
Stepless |
Stepless |
Stepless |
Stepless |
| Rated Duty Cycle (%) |
50% |
50% |
50% |
50% |
| Rated Input Capacity (KVA) |
16.5 |
24 |
33.4 |
52.6 |
| Current Range (A) |
50 – 250 |
60 – 315 |
70 – 400 |
100 – 630 |
| Electrode Diam. (mm) |
2.5 – 4 |
3.2 - 4 |
3.2 - 5 |
3.2 – 6 |
| Weight (Kg) |
80 |
90 |
100 |
115 |
|
 Rama
pin type seires
| PRODUCT
TECHNICAL SPECIFICATIONS |
|
Models |
150 A |
200 A |
250 A |
300 A |
350 A |
450 A |
| Range Of Current (Amp) |
40-150 A |
50-200A |
50-250A |
50-300A |
60-350A |
60-450A |
| Supply Voltage
|
220-440V |
220-440V |
220-440V |
220-440V |
220-440V |
220-440V |
| Current Duty Cycle |
60% |
60% |
60% |
60% |
60% |
60% |
| Insulation Class |
H |
H |
H |
H |
H |
H |
| Max. Electrode Weld |
2.15mm |
3.15mm |
4mm |
4mm |
4mm |
5mm |
| Type of Regulation |
Pin Type |
Pin Type |
Pin Type |
Pin Type |
Pin Type |
Pin Type |
| Frequency |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
| Open Circuit Voltage |
50V |
57V |
57V |
60V |
65V |
72V |
| Type Of Cooling |
Natural Air cooled |
| Weight (Appox.) |
42kg |
62kg |
72kg |
78kg |
82kg |
95kg |
| Dimension
inW*H*L(Inches) |
13x14x14 |
14x18x18 |
15x20x20 |
16x20x21 |
17x20x21 |
18x20x22 |
|
| * NOTE: We reserve the right to change the design and/or modify the specification at our discretion.
|
| |
Rama
regulator type seires
PRODUCT TECHNICAL SPECIFICATIONS
|
Models |
150 A |
250 A |
350 A |
450 A |
600 A |
| Range Of Current (Amp) |
35-150 A |
35-250A |
35-350A |
35-450A |
100-600A |
| Supply Voltage |
-------Two phase three line------- |
| Max. Current at 60% Duty Cycle |
150A |
250A |
350A |
450A |
600A |
| Max. Current at 100% Duty Cycle |
90A |
150A |
210A |
270A |
360A |
| Insulation Class |
H |
H |
H |
H |
H |
| Max. Electrode Weld |
3.15mm |
4mm |
5mm |
6mm |
6mm |
| Type of Regulation |
------Stepless Regulation------ |
| Frequency |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
| Open Circuit Voltage |
55V |
65V |
65V |
75V |
82V |
| Cooling |
------Forced Air Cooled------ |
| Weight (Appox.) |
50kg |
80kg |
115kg |
140kg |
185kg |
| Dimension in
W*H*L
(Inches) |
15x16x26 |
16x17x28 |
17x18x30 |
18x20x32 |
19x20x36 |
|
| * NOTE: We reserve the right to change the design and/or modify the specification at our discretion.
|
| |
Rama

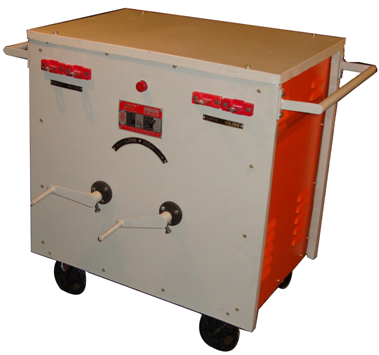

regulator type double operator seires
PRODUCT TECHNICAL SPECIFICATIONS
|
.png)
Models |
150 A |
250 A |
350 A |
450 A |
600 A |
| Range Of Current (Amp) |
35-150 A |
35-250A |
35-350A |
35-450A |
100-600A |
| Supply Voltage |
-------Two phase three line------- |
| Max. Current at 60% Duty Cycle |
150A |
250A |
350A |
450A |
600A |
| Max. Current at 100% Duty Cycle |
90A |
150A |
210A |
270A |
360A |
| Insulation Class |
H |
H |
H |
H |
H |
| Max.Electrode Weld |
3.15mm |
4mm |
5mm |
6mm |
6mm |
| Type of Regulation |
------Stepless Regulation------ |
| Frequency |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
| Open Circuit Voltage |
55V |
65V |
65V |
75V |
82V |
| Cooling |
------Forced Air Cooled------ |
| Weight (Appox.) |
75kg |
140kg |
190kg |
250kg |
285kg |
|
|
|
| |
| |
